4Mp CCTV mini dome international version indoor IP security camera DS-2CD2143G0-I

FOB Reference Price:Get Latest Price
$69.00 - $76.00 / Piece | 1 Piece/Pieces (Min. Order)
Type:
IP Camera
Style:
Dome Camera
Resolution:
4Mp
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Model Number:
DS-2CD2143G0-I
Special Features:
Vandal-proof
Sensor:
CMOS
Resolution:
2688*1520
Video Compression:
H.265/H.264/MJPEG
Lens:
2.8mm, 4mm, 6mm
SD Card:
Support up to 128 GB
IR Distance:
Up to 30m
weather-proof protection:
IP67, IK10
Wireless Range:
50m(depend on environment)
Wireless Standards:
IEEE802.11b, 802.11g, 802.11n Draft
WDR:
120db
Warranty:
2 years
Packaging & Delivery
Packaging Details
500g
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 30 To be negotiated
Video Description

Contact us

Jeff



OEM is avaiable.

Eglish version original.

Product Description

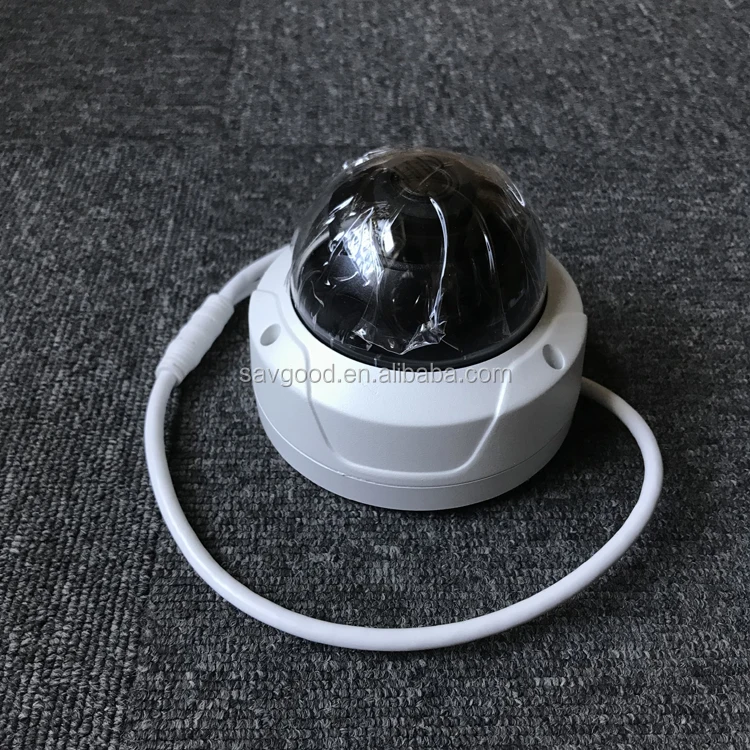

 DS-2CD2143G0-I











DS-2CD2143G0-I

4MP WDR Fixed Dome Network Camera



Main features:

• 1/3" Progressive Scan CMOS

• 2688 ×1520@30fps

• 2.8/4/6/8mm fixed lens

• Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

• H.265+, H.265, H.264+, H.264

• Three streams

• 120dB WDR

• 2 Behavior analyses, and face detection

• BLC/3D DNR/ROI/HLC

• IP67

• Built-in micro SD/SDHC/SDXC card slot, up to 128 GB

• 3-Axis adjustment





Specification:

DS-2CD2143GO-I OEM

Camera

Image Sensor

1/3" Progressive Scan CMOS

Min. Illumination

Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Auto-Iris

No

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

120dB

3-Axis Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

Focal length

2.8/4/6/8 mm

Aperture

F1.6

Focus

Manual

FOV

2.8 mm @ F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°

4 mm @F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°

6 mm @F1.6: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°

8 mm @F1.6: horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45°

Lens Mount

M12

IR



IR Range

Up to 30 m

Wavelength

850nm

Compression Standard



Video Compression

Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

H.264 Type

Main Profile/High Profile

H.264+

Main stream and sub-stream support

H.265 Type

Main Profile

H.265+

Main stream and sub-stream support

Video Bit Rate

256 Kbps to 16 Mbps

Audio Compression (-S)

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Smart Feature-set



Behavior Analysis

Line crossing detection, intrusion detection

Face Detection

Yes

Region of Interest

1 fixed region for main stream and sub-stream


Max. Resolution

2688 × 1520

Main Stream

50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)

60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)

Sub-Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)



Packaging & Shipping

Packaging:

DS-2CD2143G0-I-2



Shipping:

The common adopted Shipping methods including: DHL, FedEx, TNT, UPS, EMS, buik order By Air, By Sea

We can calculate the cost based on your quantity and choose a most quick and economic way for you.
We will send you tracking number before shipping.





Software

Free Software (iVMS-4200):

hikvision software



Mobile App (iVMS-4500):

hikvison app

Our Services

Payment Way:
T/T, Paypal, West Union, MoneyGram.

Delivery Time:
Goods in Stock needs 2-5 working days, not in stock and for bulk order needs 7-20 working days.

OEM Service:
We could offer OEM and ODM services for our clients.

Quality Warranty:
2 years hardware warranty, whole life technical service for continue cooperating customers.

FAQ

1. What products do you deal with?

We mainly deal with IP Solutions including IP Cameras, NVRs, POE Switches, also HDCVI, AHD and some Analog Products. We developed our professional PC-Based NVR software 100% in house, which is stable and unique in the market, it could manage multi-brands IP cameras.



2. The products you provided are original?

We only provide 100% original products which are all directly from Hikvision and Dahua head factories in Hangzhou City. NO FAKE VERSION. BUT OEM Service is acceptable.



3. Are OEM products same features as original?
OEM products have all the same features as original, just with different model number, OEM NVR has different front panel.



4. Do you supply PC-baed NVR/CMS software?
Yes, all ip cameras and NVRs come with FREE NVR/CMS software.



5. Do your cameras and NVRs support Mobile viewing?
Yes, all ip cameras and NVRs support mobile APP(Android and IOS), you can see videos by phone freely.
