2MP Covert Pinhole spy Network Camera IPC-HUM8230

FOB Reference Price:Get Latest Price
$52.00 - $89.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dahua
Model Number:
IPC-HUM8230
Type:
IP Camera
Style:
Hidden Camera
Sensor:
CMOS
Special Features:
Smart detection, Micro SD memory, PoE(802.3af)
Image Sensor:
1/3" progressive scan CMOS
Effective Pixels:
2Mp
Video Compression:
H.264/MJPEG
Lens:
2.8 mm fixed lens
PoE:
PoE (802.3af)
Memory Slot:
Micro SD, Max 64GB
Network Compatibility:
ONVIF, PSIA, CGI
Smart detection:
Supported
Day/Night:
Auto(Electronic)/Color/B/W
Technology:
NetWork
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Weight: 460g
Measurement: 109.7mm x 82.8mm x 24.0mm
Port
Hangzhou
Lead Time :
Shipped in 10 days after payment
Product Description









Model

IPC- HUM8101: 1/3" 1.3MP progressive scan CMOS HD Ultra-smart Network Pinhole Camera; Max 25/30fps @1.3MP (1280X960); 3.6mm fixed lens; Day/Night(Electronic), 3DNR, AWB,AGC,BLC, Micro SD memory, PoE.





Features

> 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
> H.265&H.264 triple-stream encoding
> 25/30fps@1080P(1920×1080)
> Day/Night(Electronic), 3DNR,AWB,AGC,BLC
> Smart detection
> 2.8mm Fixed Lens
> Micro SD memory, PoE





Specification

IPC-HUM8230



Camera

Image Sensor

1/2.8” 2Megapixel progressive scan CMOS

Effective Pixels

1920(H)x1080(V)

RAM/ROM

256MB/32MB

Scanning System

Progressive

Minimum Illumination

L1: 0.07Lux/F2.4 (Color), 0.007Lux/F2.4 (B/W)

L3: 0.009Lux/F1.8 (Color), 0.001Lux/F1.8 (B/W)

S/N Ratio

More than 50dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8mm

Max. Aperture

Sensor Unit L1:F2.4

Sensor Unit L3:F1.8

Angle of View

Sensor Unit L1 H:104° ,V:57°

Sensor Unit L3 H:118° ,V:60°

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

N/A

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

N/A

Intelligence

IVS (optional)

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ VGA(640x480)/ CIF(352×288/342x240)

Frame Rate

Main Stream: 1080P(1~25/30fps)

Sub Stream: D1 (1 ~ 25/30fps)

Third Stream: 1080P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24Kbps~ 9472Kbps

H.265: 14Kbps~ 5632Kbps

Day/Night

Electronic

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

N/A

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;

DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;

Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

1/1 channel In/Out

RS232

1 port

Alarm

2/2 channel In/Out

Electrical

Power Supply

DC12V, PoE(802.3af)(Class 0)

Power Consumption

<6W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

N/A

Vandal Resistance

N/A

Construction

Casing

Metal

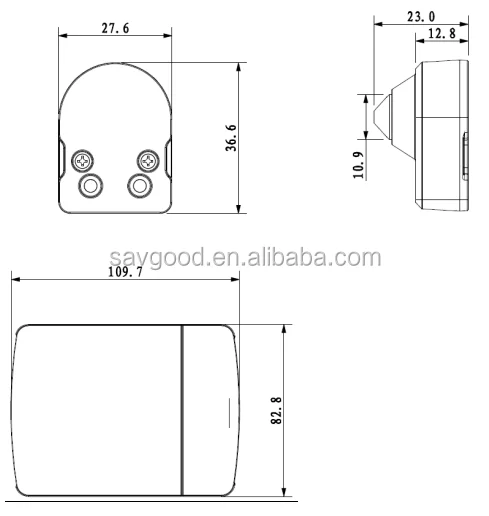

Dimensions

Main Unit:110.0mm×82.7mm×24.0mm (4.33”×3.26”×0.95”)

Sensor Unit L1:Φ26.5mm×48.31mm(Φ1.04”×1.9”)

Sensor Unit L3:Φ26.5mm×50.38mm(Φ1.04”×2.0”)

Net Weight

Main Unit:0.2Kg (lb)

Sensor Unit L1:0.22Kg (lb)

Sensor Unit L3:0.235Kg (lb)

Gross Weight

Main Unit:0.36Kg (lb)

Sensor Unit L1:0.31Kg (lb)

Sensor Unit L3:0.325Kg (lb)

Free Software

Free Software (Smart PSS):

Mobile App (iDMSS, gDMSS):





Packaging & Shipping

Packaging:



Shipping:

The common adopted Shipping methods including: DHL, FedEx, TNT, UPS, EMS, buik order By Air, By Sea

We can calculate the cost based on your quantity and choose a most quick and economic way for you.
We will send you tracking number before shipping.



Our Services

Payment Way:
T/T, Paypal, West Union, MoneyGram.

Delivery Time:
Goods in Stock needs 2-5 working days, not in stock and for bulk order needs 7-20 working days.

OEM Service:
We could offer OEM and ODM services for our clients.

Quality Warranty:
2 years hardware warranty, whole life technical service for continue cooperating customers.

FAQ

1. What products do you deal with?

We mainly deal with IP Solutions including IP Cameras, NVRs, POE Switches, also HDCVI, AHD and some Analog Products. We developed our professional PC-Based NVR software 100% in house, which is stable and unique in the market, it could manage multi-brands IP cameras.



2. The products you provided are original?

We only provide 100% original products which are all directly from Hikvision and Dahua head factories in Hangzhou City. NO FAKE VERSION. BUT OEM Service is acceptable.



3. Are OEM products same features as original?
OEM products have all the same features as original, just with different model number, OEM NVR has different front panel.



4. Do you supply PC-baed NVR/CMS software?
Yes, all ip cameras and NVRs come with FREE NVR/CMS software.



5. Do your cameras and NVRs support Mobile viewing?
Yes, all ip cameras and NVRs support mobile APP(Android and IOS), you can see videos by phone freely.
