Dahua 3MP IR Mini-Dome Wi-Fi IP67 IK10 camera IPC-HDBW1320E-W

FOB Reference Price:Get Latest Price
$1.00 - $53.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dahua
Model Number:
IPC-HDBW1320E-W
Type:
IP Camera
Special Features:
Waterproof / Weatherproof
Sensor:
CMOS
Style:
Dome Camera
Megapixel:
3.0MP
Resolution:
2304*1536
Lens:
2.8mm,3.6mm optional
IR Distance:
up to 30m
PoE:
Support
Day/Night:
ICR
Image Sensor:
1/3" 3Megapixel progresive CMOS
Weather Proof:
IP67
Power Supply:
DC12V
Wifi:
Wi-Fi(IEEE802.11b/g/n), 50m(open field)
Technology:
NetWork
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Weight: 0.47Kg (1.04lb)
Measurement: 109.9mm * 81mm (4.33" * 3.19")
Port
Shanghai
Lead Time :
Shipped in 7 days after payment



Top



Product Description

 dahua58











Model

IPC-HDBW1320E-W: 1/3" 3M CMOS,ICR,H.264/MJPEG,3M@20fps,1080P(1~30fps) ,2.8mm 3.6mm optional,IR 30m,IP67,DC12V 2.4GHz Wi-Fi, Micro SD



Features



> 1/3” 3Megapixel progressive CMOS
> H.264 & MJPEG dual-stream encoding
> 20fps@(2304x1296)&25/30fps@2M(1920x1080)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Wi-Fi support
> 2.8 mm fixed lens (3.6 mm optional)
> Max IR LEDs Length 30m
> IP67, IK10



Specification



IPC-HDBW1320E-W



Camera

Image Sensor

1/3” 3Megapixel progresive CMOS

Effective Pixels

2304(H)x1536(V)

RAM/ROM

256MB/16MB

Scanning System

Progressive

Minimum Illumination

0.1Lux/F2.0(Color), 0Lux/F2.0(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 30m(98ft)

IR On/Off Control

Auto/ Manual

IR LEDs

24

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8 mm (3.6 mm optional)

Max. Aperture

F2.0/F2.0

Angle of View

H:100°/77°, V:55°/42°

Focus Control

Fixed

Close Focus Distance

N/A

PTZ

Pan/Tilt Range

Pan:0° ~355° ;Tilt:0° ~55° ;Rotation:0° ~355°

Video

Compression

H.264/H.264B/H.264H/MJPEG

Streaming Capability

2 Streams

Resolution

3M(2304×1296)/1080P(1920×1080)/ 1.3M(1280×960)/720P(1280×720)/720P(1280×720)/ VGA(640×480)/QVGA(320×240)

Frame Rate

3M(1 ~ 20fps)/2M (1 ~ 25/30fps)

VGA(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H264:32K ~ 10240Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image

Support

Smart IR

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Wi-Fi

Wi-Fi(IEEE802.11b/g/n), 50m(open field)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;

DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;

Bonjour;802.1x;Multicast;ICMP;IGMP;

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS(Network Attached Storage),Local PC for instant recording, 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS,Easy4ip

Smart Phone

iPhone, iPad, Android Phone

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V

Power Consumption

<5.5W

Environmental

Operating Conditions

-10° C ~ +50° C (-14° F ~ +122° F) / Less than 95% RH

Strorage Conditions

-10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

Φ109.9mm × 81mm (4.33" x 3.19")

Net Weight

0.34Kg (0.75lb)

Gross Weight

0.47Kg (1.04lb)

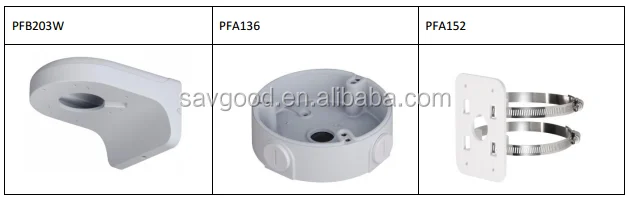

Accessories

 Ass_IPC-HDBW1320E-W









Dimensions

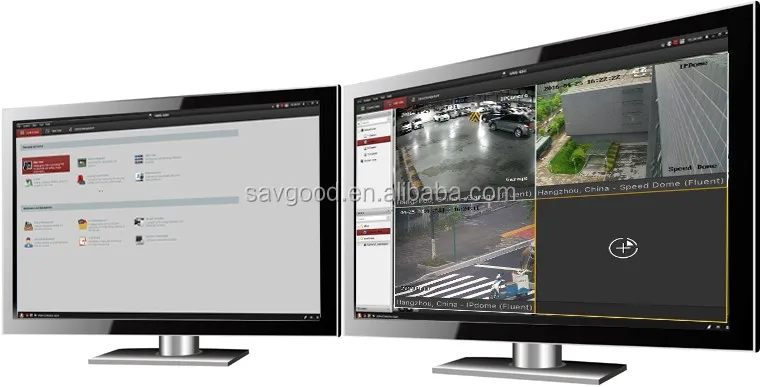

Software

Free Software (iVMS-4200):

hikvision software



Mobile App (iVMS-4500):

hikvison app

Packaging & Shipping

Packaging:

760 .jpg



Shipping:

The common adopted Shipping methods including: DHL, FedEx, TNT, UPS, EMS, buik order By Air, By Sea

We can calculate the cost based on your quantity and choose a most quick and economic way for you.
We will send you tracking number before shipping.

Our Services

Payment Way:
T/T, Paypal, West Union, MoneyGram.

Delivery Time:
Goods in Stock needs 2-5 working days, not in stock and for bulk order needs 7-20 working days.

OEM Service:
We could offer OEM and ODM services for our clients.

Quality Warranty:
2 years hardware warranty, whole life technical service for continue cooperating customers.

FAQ

1. What products do you deal with?

We mainly deal with IP Solutions including IP Cameras, NVRs, POE Switches, also HDCVI, AHD and some Analog Products. We developed our professional PC-Based NVR software 100% in house, which is stable and unique in the market, it could manage multi-brands IP cameras.



2. The products you provided are original?

We only provide 100% original products which are all directly from Hikvision and Dahua head factories in Hangzhou City. NO FAKE VERSION. BUT OEM Service is acceptable.



3. Are OEM products same features as original?
OEM products have all the same features as original, just with different model number, OEM NVR has different front panel.



4. Do you supply PC-baed NVR/CMS software?
Yes, all ip cameras and NVRs come with FREE NVR/CMS software.



5. Do your cameras and NVRs support Mobile viewing?
Yes, all ip cameras and NVRs support mobile APP(Android and IOS), you can see videos by phone freely.
