Dahua cctv IPC-HF8630F-S2 6MP h.265 support Box ip camera

FOB Reference Price:Get Latest Price
$1.00 - $315.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dahua
Model Number:
IPC-HF8630F-S2
Type:
IP Camera
Special Features:
Micro SD memory
Sensor:
CMOS
Style:
Box Camera
Resolution:
3072(H)x2048(V)
Image Sensor:
1/1.8" 6Megapixel progressive scan CMOS
Video Compression:
H.265+/H.265/H.264+/H.264
PoE:
Support
WDR:
DWDR
ONVIF:
Support
Audio:
support
RAM/ROM:
1024MB/128MB
Day/Night:
Auto(ICR) / Color / B/W
Digital Zoom:
16x
Technology:
NetWork
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Dimensions: 161.6mm*85.5mm*74.0mm (6.36"*3.37"*2.91")
Net Weight: 0.72Kg (1.59lb)
Gross Weight: 0.92Kg (2.03lb)
Port
Shanghai
Lead Time :
Shipping in 7 Days after Payment
TOP
Product Description

 dahua35



Model

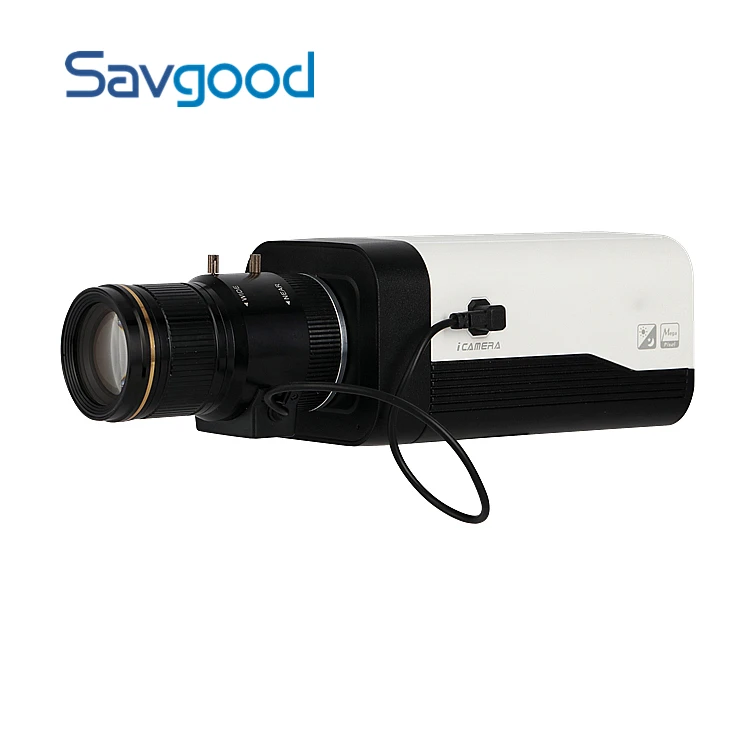

IPC-HF8630F-S2: 6MP Box Network Camera

Features

> 1/1.8” 6Megapixel progressive scan STARVIS™ CMOS
> H.265&H.264 triple-stream encoding
> 25/30fps@6M(3072×2048)
> DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Auto back focus(ABF)
> Micro SD memory, PoE



Specification

Camera

Image Sensor

1/1.8” 6Megapixel progressive scan CMOS

Effective Pixels

3072(H)x2048(V)

RAM/ROM

1024MB/128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.005Lux/F1.2(Color,1/3s,30IRE)

0.05Lux/F1.2(Color,1/30s,30IRE)

0.003Lux/F1.2(B/W,1/3s,30IRE)

0.03Lux/F1.2(B/W,1/30s,30IRE)

S/N Ratio

More than 50dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Lens Type

N/A

Mount Type

C/CS

Focal Length

N/A

Max. Aperture

N/A

Angle of View

N/A

Optical Zoom

N/A

Focus Control

N/A

Close Focus Distance

N/A

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

N/A

Intelligence

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection, People Counting, Heat Map

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

6M(3072x2048)/ 5M(2560x1920)/ 3M(2048x1536)/ 3M(2304x1296)/ 1080P(1920×1080)/1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480) / VGA(640x480)/ CIF(352×288/342x240)

Frame Rate

Main Stream: 6M(1~25/30fps)

Sub Stream: D1 (1 ~ 25/30fps)

Third Stream: 1080P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24~ 16384Kbps

H.265: 14~ 9984Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR/ SSA

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

Support

Smart IR

N/A

Defog

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (100/1000Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;

DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;

Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

1 port(BNC,1Vp-p,75Ω)

Audio Interface

2/1 channel In/Out, 1 Built-in Mic

RS485

1 port

Alarm

2 channel In: 5mA 5VDC

2 channel Out: 1A 30VDC / 0.5A 50VAC

Electrical

Power Supply

DC12V, AC24V, PoE(802.3af)(Class 0)

Power Consumption

<7W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

N/A

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

161.6mm×85.5mm×74.0mm (6.36”×3.37”×2.91”)

Net Weight

0.72Kg (1.59lb)

Gross Weight

0.92Kg (2.03lb)

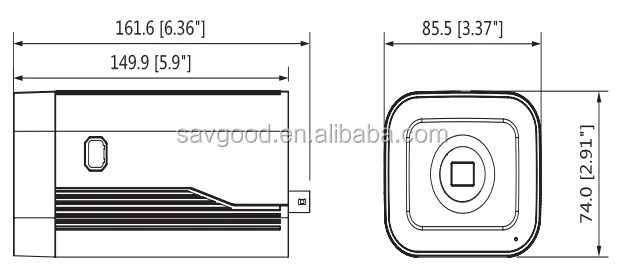

Dimensions(mm)

 IPC-HF8630F-S2_

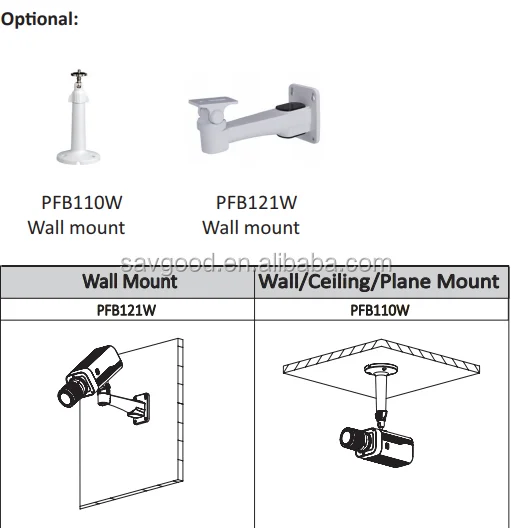

Accessories

IPC-HF8630F-S2_

Free Software

Free Software (Smart PSS):

dahua software

Mobile App (iDMSS, gDMSS):

dahua APP

Packaging & Shipping

Packaging:

760 .jpg



Shipping:

The common adopted Shipping methods including: DHL, FedEx, TNT, UPS, EMS, buik order By AirBy Sea

We can calculate the cost based on your quantity and choose a most quick and economic way for you.
We will send you tracking number before shipping.

Our Services

Payment Way:
T/T, Paypal, West Union, MoneyGram.

Delivery Time:
Goods in Stock needs 2-5 working days, not in stock and for bulk order needs 7-20 working days.

OEM Service:
We could offer OEM and ODM services for our clients.

Quality Warranty:
2 years hardware warranty, whole life technical service for continue cooperating customers.

FAQ

1. What products do you deal with?

We mainly deal with IP Solutions including IP Cameras, NVRs, POE Switches, also HDCVI, AHD and some Analog Products. We developed our professional PC-Based NVR software 100% in house, which is stable and unique in the market, it could manage multi-brands IP cameras.



2. The products you provided are original?

We only provide 100% original products which are all directly from Hikvision and Dahua head factories in Hangzhou City. NO FAKE VERSION. BUT OEM Service is acceptable.



3. Are OEM products same features as original?
OEM products have all the same features as original, just with different model number, OEM NVR has different front panel.



4. Do you supply PC-baed NVR/CMS software?
Yes, all ip cameras and NVRs come with FREE NVR/CMS software.



5. Do your cameras and NVRs support Mobile viewing?
Yes, all ip cameras and NVRs support mobile APP(Android and IOS), you can see videos by phone freely.
