dahua IPC-HFW2121R-VFS-IRE6 1.3MP Vari-focal lens WDR IR OEM Available CCTV Security Camera

FOB Reference Price:Get Latest Price
$1.00 - $79.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dahua
Model Number:
IPC-HFW2121R-VFS-IRE6
Type:
IP Camera
Special Features:
Waterproof / Weatherproof
Sensor:
CMOS
Style:
Bullet Camera
Effective Pixels:
1280(H) x960(V)
Lens:
2.7mm~12mm motorized
Image Sensor:
1/2.7" 1.3Megapixel progressive CMOS
IR Distance:
60m
PoE:
Support
ONVIF:
Support
Video Compression:
H.264+/H.264
WDR:
120dB
App:
Free iPhone, Android App.
Day/Night:
Auto(ICR) / Color / B/W
Technology:
Infrared
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Dimensions: 72mm*80mm*212.8mm ((2.8" * 3.1" * 8.4"))
Net Weight: 0.685Kg (1.51lb)
Gross Weight: 0.86Kg (1.90lb)
Port
Shanghai
Lead Time :
Shipped in 7 days after payment
TOP



Product Description

 dahua37

Model

IPC-HFW2121R-VFS- IRE6: 1.3MP WDR IR Bullet Network Camera

Features

> 1/2.7” 1.3Megapixel progressive CMOS
> H.264+ & H.264 dual-stream encoding
> 25/30fps//1.3M(1280×960)
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Micro SD card slot, up to 128GB
> 2.7~12mm varifocal lens
> Max IR LEDs Length 60m
> IP67, PoE



Specification

Camera

Image Sensor

1/2.7” 1.3Megapixel progressive CMOS

Effective Pixels

1280(H) x960(V)

RAM/ROM

256MB/16MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3(4)~1/100000s

Minimum Illumination

0.1Lux/F1.4(Color), 0Lux/F1.4(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 60m(197ft)

IR On/Off Control

Auto/ Manual

IR LEDs

4

Lens

Lens Type

Motorized(-ZS),Manual(-VFS)

Mount Type

Board-in

Focal Length

2.7mm~12mm

Max. Aperture

F1.4

Angle of View

H:99°~37°, V:52°~21°

Focus Control

Motorized(-ZS),Manual(-VFS)

Close Focus Distance

0.3m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

35m(115ft)

14m(46ft)

7m(23ft)

4m(13ft)

T

99m(325ft)

39m(128ft)

20m(66ft)

10m(33ft)

PTZ

Pan/Tilt Range

Pan:0° ~360 ° ;Tilt:0° ~90° ;Rotation:0° ~360°

Video

Compression

H.264+/H.264

Streaming Capability

2 Streams

Resolution

1.3M(1280x960)/720P(1280×720)/ D1(704×576/704×480)/CIF(352×288/352×240)

Frame Rate

1.3M (1 ~ 25/30fps)

D1/CIF(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H264:24K ~ 8192Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization(EIS)

N/A

Smart IR

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;

DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;

Bonjour;802.1x;Multicast;ICMP;IGMP;

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS(Network Attached Storage)

Local PC for instant recording

Micro SD Card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS,Easy4ip

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V PoE (802.3af)(Class 0)

Power Consumption

<12.95W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

72mm×80mm×212.8mm ((2.8" x 3.1"x 8.4"))

Net Weight

0.685Kg (1.51lb)

Gross Weight

0.86Kg (1.90lb)

Dimmension

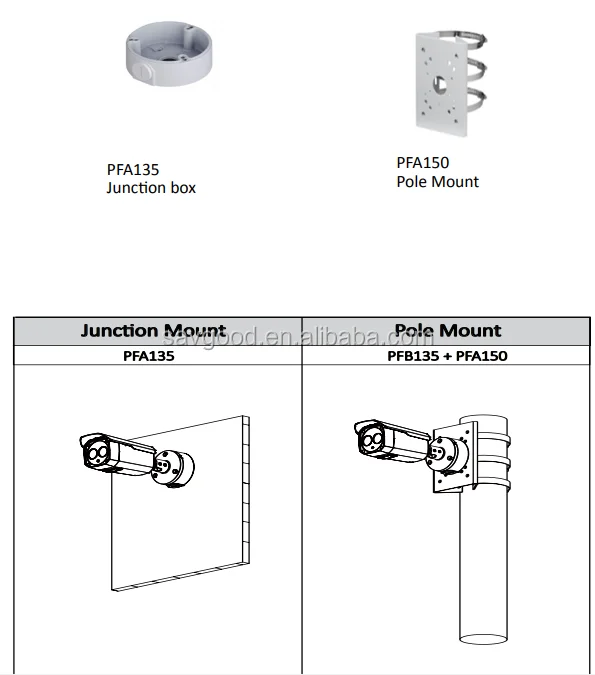

Accessories

IPC-HFW4231B-AS_


Free Software

Free Software (Smart PSS):

dahua software

Mobile App (iDMSS, gDMSS):

dahua APP

Packaging & Shipping

Packaging:

760 .jpg



Shipping:

The common adopted Shipping methods including: DHL, FedEx, TNT, UPS, EMS, buik order By Air, By Sea

We can calculate the cost based on your quantity and choose a most quick and economic way for you.
We will send you tracking number before shipping.

Our Services

Payment Way:
T/T, Paypal, West Union, MoneyGram.

Delivery Time:
Goods in Stock needs 2-5 working days, not in stock and for bulk order needs 7-20 working days.

OEM Service:
We could offer OEM and ODM services for our clients.

Quality Warranty:
2 years hardware warranty, whole life technical service for continue cooperating customers.

FAQ

1. What products do you deal with?

We mainly deal with IP Solutions including IP Cameras, NVRs, POE Switches, also HDCVI, AHD and some Analog Products. We developed our professional PC-Based NVR software 100% in house, which is stable and unique in the market, it could manage multi-brands IP cameras.



2. The products you provided are original?

We only provide 100% original products which are all directly from Hikvision and Dahua head factories in Hangzhou City. NO FAKE VERSION. BUT OEM Service is acceptable.



3. Are OEM products same features as original?
OEM products have all the same features as original, just with different model number, OEM NVR has different front panel.



4. Do you supply PC-baed NVR/CMS software?
Yes, all ip cameras and NVRs come with FREE NVR/CMS software.



5. Do your cameras and NVRs support Mobile viewing?
Yes, all ip cameras and NVRs support mobile APP(Android and IOS), you can see videos by phone freely.
