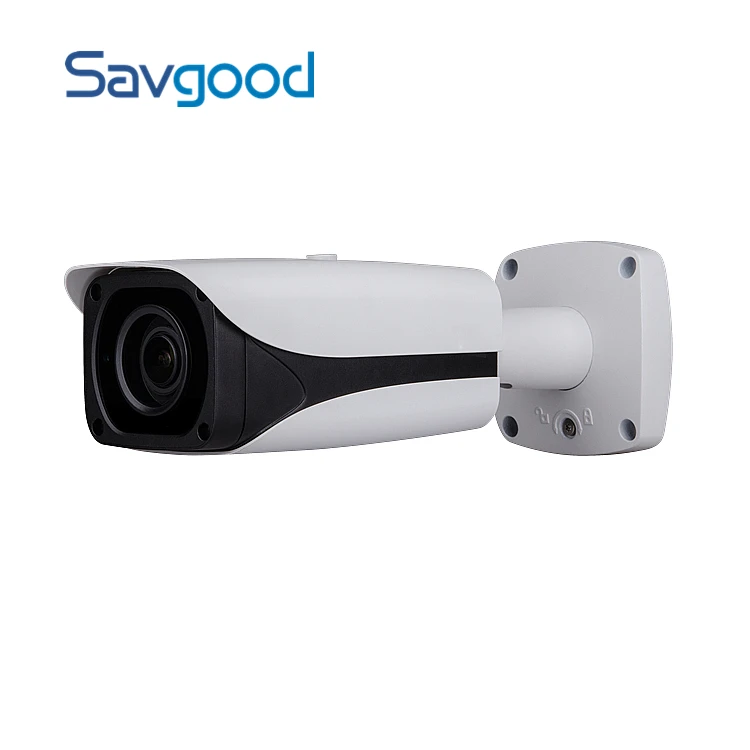

Dahua IPC-HFW5830E-Z5 8MP 7mm ~35mm motorized lens 100m IR Dahua 4K IR Bullet Network Camera

FOB Reference Price:Get Latest Price
$1.00 - $204.00 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dahua
Model Number:
IPC-HFW5830E-Z5
Type:
IP Camera
Style:
Bullet Camera
Sensor:
CMOS
Special Features:
Waterproof / Weatherproof
Image Sensor:
1/1.7" progressive scan CMOS
Effective Pixels:
4K(3840x2160)
Video Compression:
H.265+/H.265/H.264+/H.264
IR Distance:
100m
Lens:
7mm ~35mm motorized lens
PoE:
PoE (802.3af)
Memory Slot:
Micro SD, Max 128GB
Network Compatibility:
ONVIF, PSIA, CGI
Face Detection:
Support
Ingress Protection:
IP67
Technology:
NetWork
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Dimensions: 273.2mmx95.0mmx96.4mm (10.76"x3.74"x3.79")
Net Weight: 1.07Kg (2.36lb)
Gross Weight: 1.4Kg (3.09lb)
Port
Hangzhou
Lead Time :
Shipped in 15 days after payment
Top

Product Description

Dimensions (mm)



Model

IPC-HFW5830E-Z5: 8MP IR Bullet Network Camera





Features

> 1/2.5” 8Megapixel progressive scan CMOS
> H.265&H.264 dual-stream encoding
> 15fps@4K(3840×2160),25/30fps@3Mp(2304×1296)
> Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 7mm ~35mm motorized lens
> Max. IR LEDs Length 100m
> Micro SD memory, IP67, PoE



Specification

Camera

Image Sensor

1/2.5” 8Megapixel progressive scan CMOS

Effective Pixels

3840(H)x2160(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.05Lux/F1.4 (Color,1/3s,30IRE)

0.2Lux/F1.4 (Color,1/30s,30IRE)

0Lux/F1.4(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 100m (328ft)

IR On/Off Control

Auto/ Manual

IR LEDs

4

Lens

Lens Type

Motorized/ Auto Iris(HALL)

Mount Type

Board-in

Focal Length

7mm~35mm

Max. Aperture

F1.4

Angle of View

H:38°~11° , V:21°~6°

Optical Zoom

5x

Focus Control

Motorized

Close Focus Distance

0.6m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

234m(767ft)

94m(308ft)

47m(154ft)

23m(75ft)

T

765m(2509ft)

306m(1004ft)

153m(502ft)

76m(251ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0~360; Tilt:0~90; Rotation:0~360

Intelligence

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/

3M(2048x1536)/3M(2304×1296)/

1080P(1920×1080)/1.3M(1280x960)/

720P(1280×720)/D1(704×576/704×480) /VGA(640×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 4K(1~15fps)/3M(1~25/30fps)

Sub Stream: D1(1~25/30fps)

Third Stream: 720P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24K ~ 10240Kbps

H.265: 14K ~ 9984Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;

IGMP; SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users /20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

1 Port(For adjustment only)

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

2/1 channel In/Out2 channel In: 5mA 5VDC

1 channel Out: 300mA 12VDC

Electrical

Power Supply

DC12V, PoE (802.3af)(Class 0)

Power Consumption

<11.5W



Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

273.2mm×95.0mm×96.4mm (10.76”×3.74”×3.79”)

Net Weight

1.07Kg (2.36lb)

Gross Weight

1.4Kg (3.09lb)

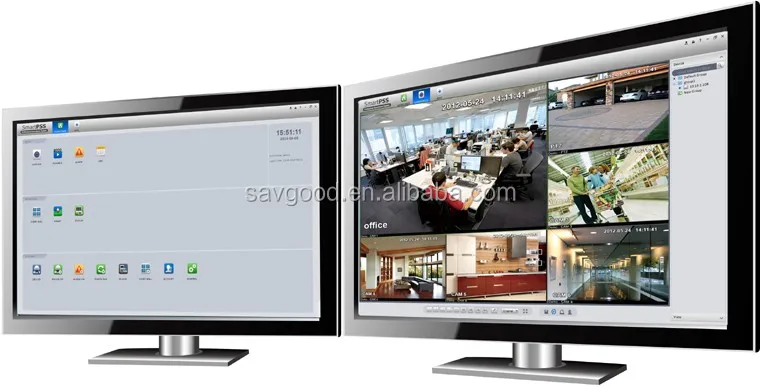

Free Software

Free Software (Smart PSS):

Mobile App (iDMSS, gDMSS):









Packaging & Shipping

Packaging:



Shipping:

The common adopted Shipping methods including: DHL, FedEx, TNT, UPS, EMS, buik order By Air, By Sea

We can calculate the cost based on your quantity and choose a most quick and economic way for you.
We will send you tracking number before shipping.





Our Services

Payment Way:
T/T, Paypal, West Union, MoneyGram.

Delivery Time:
Goods in Stock needs 2-5 working days, not in stock and for bulk order needs 7-20 working days.

OEM Service:
We could offer OEM and ODM services for our clients.

Quality Warranty:
2 years hardware warranty, whole life technical service for continue cooperating customers.
