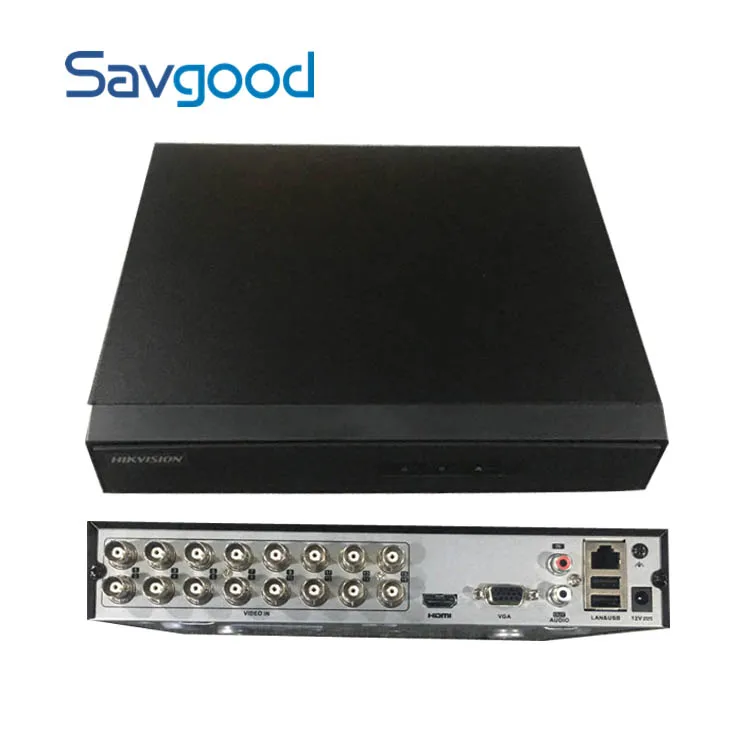

1080P 16ch 1HDD turbo HD DVR DS-7216HGHI-F1

FOB Reference Price:Get Latest Price
$110.00 - $115.00 / Piece | 1 Piece/Pieces (Min. Order)
Type:
DVR
Channels:
16
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
DS-7216HGHI-F1
Channels Input:
16ch
Max Resolution:
2Mp
Output:
HDMI
HDDs:
1sata
color:
black
Warranty:
2 Years
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
260 * 222 * 45mm (10.2* 8.7* 1.8 inch)
1.2KG
Port
Shanghai, Shenzheng




Product Description

 Model

DS-7216HGHI-F1

 DS-7216HGHI-F1



Features

• H.264 /H.264+& Dual-stream video compression

• Support both HD-TVI /analog and AHD cameras with
adaptive access
• Full channel recording at up to 1080P lite resolution

• HDMI and VGA output at up to 1920×1080P resolution
• Long transmission distance over coax cable
• Support  4/8/16-ch synchronous playback at 720P
resolution





Specification

Video/Audio Input
Audio Input:|1-ch
Video Compression:|H.264,H.264+
Analog and HD-TVI video input:|16-ch  BNC interface (1.0Vp-p, 75 Ω)
Supported camera types:|Support HDTVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz,
Support AHD input: 720P/25Hz, 720P/30Hz,
support CVBS input
IP Video Input:|2-ch Up to 2MP resolution
Audio Compression:|G.711u
Audio Input Interface:|RCA (2.0 Vp-p, 1 kΩ)
Two-way Audio:|1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)
Video/Audio Output
HDMI/VGA Output:|1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:|When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF;
When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame Rate:|Main stream:
When 1080p Lite mode not enabled:
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Video Bit Rate:|32 Kbps ~ 4 Mbps
Stream Type:|Video/Video&Audio
Audio Output:|1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:|64kbps
Dual Stream:|Support
Playback Resolution:|1080p lite/720p/WD1/4CIF/VGA/CIF
Synchronous Playback:|16-ch
Network management
Remote connections:|128
Network protocols:|TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Hard Disk Driver
Interface Type:|1 SATA Interface
Capacity:|Up to 6 TB capacity for each disk
External Interface
Network Interface:|1; 10M / 100M self-adaptive Ethernet interface
USB Interface:|2 USB 2.0 Interfaces
General
Power Supply:|12V DC
Consumption:|≤ 20W(without hard disks)
Working Temperature:|-10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
Working Humidity:|10% ~ 90%
Chassis:|1U chassis
Dimensions:|260 × 222 × 45mm (10.2 × 8.7 × 1.8 inch)
Weight:|≤ 1.2 Kg (2.6 lb) (without hard disks)



Packaging & Shipping

Packaging:

DS-7216HGHI-F1-1



Shipping:

The common adopted Shipping methods including: DHL, FedEx, TNT, UPS, EMS, buik order By Air, By Sea

We can calculate the cost based on your quantity and choose a most quick and economic way for you.
We will send you tracking number before shipping.



Our Services

Payment Way:
T/T, Paypal, West Union, MoneyGram.

Delivery Time:
Goods in Stock needs 2-5 working days, not in stock and for bulk order needs 7-20 working days.

OEM Service:
We could offer OEM and ODM services for our clients.

Quality Warranty:
2 years hardware warranty, whole life technical service for continue cooperating customers.
