Dahua new release EPOE 8MP 7mm ~35mm 5X zoom lens 4k H.265 IR100m dome ip camera IPC-HDBW5831E-Z5E

FOB Reference Price:Get Latest Price
  • 1 - 19 Pieces
    $195.00
  • >=20 Pieces
    $187.00
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dahua
Model Number:
IPC-HDBW5831E-Z5E
Type:
IP Camera
Special Features:
Vandal-proof
Sensor:
CMOS
Style:
Dome Camera
Megapixel:
8.0MP
Resolution:
3840*2160
Lens:
7mm ~35mm
IR Distance:
up to100m
PoE:
POE+
Day/Night:
ICR
Image Sensor:
1/2.5" 8Megapixel progressive scan CMOS
Ingress Protection:
IP67,IK10
Power Supply:
DC12V, AC24V, PoE(802.3af)(Class 0)
Compression:
H.265+/H.265/H.264+/H.264
Technology:
Infrared
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Weight: 1.20kg (2.65lb)
Measurement: 159.1mm*117.9mm (6.26 "* 4.64")
Port
Shanghai
Lead Time :
Shipped in 7 days after payment



Top



Product Description

 dahua29



 IPC-HDBW5830E-Z5-dIPC-HDBW5830E-Z5-c







Model



IPC-HDBW5831E-Z5E:  8MP WDR IR Dome Network Camera



Features



> 1/2.5” 8Megapixel progressive scan CMOS
> H.265&H.264 dual-stream encoding
> 15fps@4K(3840×2160),25/30fps@3M(2304×1296)
> Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 7mm ~35mm 5X zoom lens
> Max. IR LEDs Length 100m
> Micro SD card memory, IP67,IK10, PoE+



Specification



IPC-HDBW5831E-Z5E

Camera

Image Sensor

1/2.5” 8Megapixel progressive scan CMOS

Effective Pixels

3840(H)x2160(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.05Lux/F1.4 (Color,1/3s,30IRE)

0.2Lux/F1.4 (Color,1/30s,30IRE)

0Lux/F1.4(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 100m (328ft)

IR On/Off Control

Auto/ Manual

IR LEDs

3

Lens

Lens Type

Motorized/ Auto Iris(HALL)

Mount Type

Board-in

Focal Length

7mm~35mm

Max. Aperture

F1.4

Angle of View

H:38°~14° , V:22°~8°

Optical Zoom

5x

Focus Control

Motorized

Close Focus Distance

0.6m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

234m(767ft)

94m(308ft)

47m(154ft)

23m(75ft)

T

765m(2509ft)

306m(1004ft)

153m(502ft)

76m(251ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0°~355°; Tilt:0°~65°; Rotation:0°~355°

Intelligence

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

4K(3840×2160)/ 6M(3072×2048)/5M(3072x1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048x1536)/ 3M(2304×1296)/ 1080P(1920×1080)/ 1.3M(1280x960)/

720P(1280×720)/ D1(704×576/704×480)/

VGA(640×480)/ CIF(352×288/352×240)

Frame Rate

Main Stream: 4K(1~15fps)/3M(1~25/30fps)

Sub Stream: D1(1~25/30fps)

Third Stream: 720P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24K ~ 10240Kbps

H.265: 14K ~ 9984Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;

IGMP; SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users /20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

1 Port(For adjustment only)

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

1 channel In: 5mA 5VDC

1 channel Out: 300mA 12VDC

Electrical

Power Supply

DC12V, AC24V, PoE+(802.3at)(Class 4)

Power Consumption

<15W

Environmental

Operating Conditions

-30° C ~ +60 °C (-22 ° F ~ +140 ° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60 ° C (-22 ° F ~ +140 ° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

Φ159.1mm×117.9mm (6.26”×4.64”)

Net Weight

0.95kg (2.09lb)

Gross Weight

1.20kg (2.65lb)

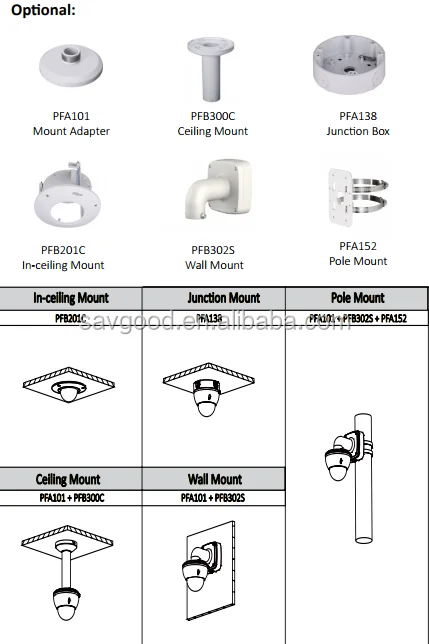

Accessories

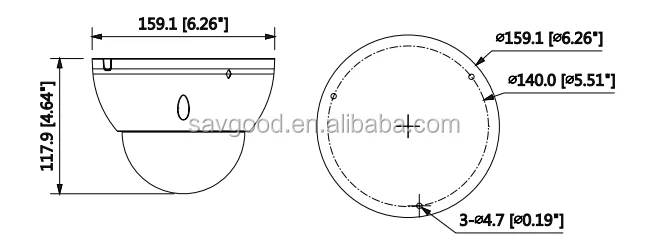

Dimensions



 IPC-HDBW8630E-Z-S2_





Software

Free Software (iVMS-4200):

hikvision software



Mobile App (iVMS-4500):

hikvison app

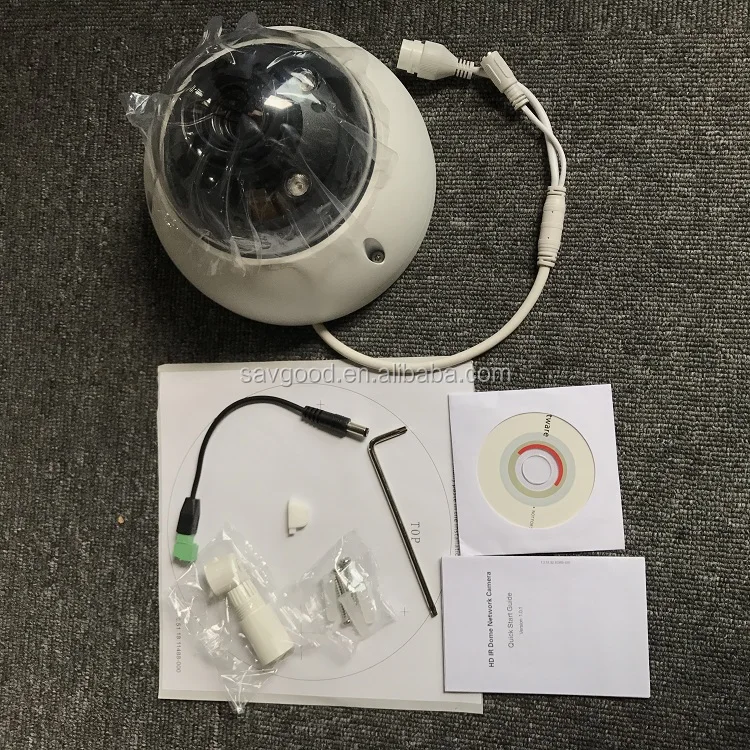

Packaging & Shipping

Packaging:

760 .jpg



Shipping:

The common adopted Shipping methods including: DHL, FedEx, TNT, UPS, EMS, buik order By Air, By Sea

We can calculate the cost based on your quantity and choose a most quick and economic way for you.
We will send you tracking number before shipping.

Our Services

Payment Way:
T/T, Paypal, West Union, MoneyGram.

Delivery Time:
Goods in Stock needs 2-5 working days, not in stock and for bulk order needs 7-20 working days.

OEM Service:
We could offer OEM and ODM services for our clients.

Quality Warranty:
2 years hardware warranty, whole life technical service for continue cooperating customers.
