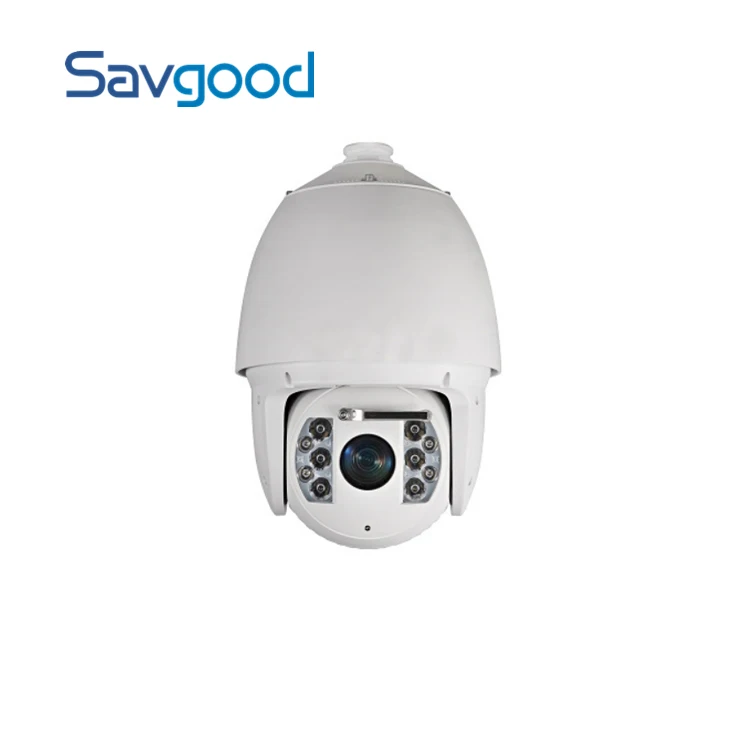

2MP 32X Network IR150m Speed Dome OEM version PTZ camera focal length 4.5 mm to 144 mm DS-2DF7232IX-AEL

  • 4 - 39 Pieces
    $1,010.00
  • >=40 Pieces
    $968.00
Type:
IP Camera
Style:
Dome Camera
Resolution:
1920 x 1080
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 50 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
DS-2DF7232IX-AEL
Special Features:
Waterproof / Weatherproof
Sensor:
CMOS
Technology:
Pan / Tilt / Zoom
Resolution:
1920*1080
IR Distance:
150m
WDR:
DWDR
Day/Night:
ICR
Onvif:
Support
Hi-PoE:
Support
Focal Length:
4.5 mm to 144 mm, 32 X Optical
Megapixel:
2MP
Image Sensor:
1/2.8" Progressive Scan CMOS
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Weight: 6Kg (13.23 Ibs)
Measurement: 245*373.94mm (9.65"*14.72")(Outdoor)
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 50 To be negotiated
Top

Product Description

DS-2DF7232IX-AEL



Model



DS-2DF7232IX-AEL: 2MP 32× Network IR Speed Dome



Features



1/2.8" progressive scan CMOS

Up to 1920 × 1080 resolution

Min. Illumination:

Color: 0.002 Lux @(F1.2, AGC ON)
B/W: 0.0002 Lux @(F1.2, AGC ON)
0 Lux with IR

32× optical zoom, 16× digital zoom

120dB WDR, 3D DNR, HLC, Smart IR

24 VAC & Hi-PoE

Up to 150 m IR distance

Support H.265+/H.265 video compression

Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection

Rapid focus

IP66



Specification



DS-2DF7232IX-AEL:

Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Effective Pixels: 1920(H)x1080(V)
Signal System: PAL/NTSC
Minimum Illumination: Color: 0.002 Lux @(F1.2, AGC ON)
B/W: 0.0002 Lux @(F1.2, AGC ON)
0 Lux with IR
White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: Auto/Manual
BLC: ON/OFF
HLC: Support
Smart defog: Support
WDR: 120dB
Shutter Time: 50Hz: 1/1-1/30,000s
60Hz: 1/1-1/30,000s
Day& Night: ICR
Digital Zoom: 16X
Privacy Masking: 24 privacy masks programmable; optional multiple colors and mosaics
Auto Focus: Auto / Semi-automatic / Manual
Rapid Focus: Support
Lens
Focal Length: 4.5 mm to 144 mm, 32× Optical
Zoom Speed: Approx. 4.1 s (optical lens, wide-tele)
Angle of View: Horizontal field of view: 61.4° to 2.1° (wide-tele)
Vertical field of view: 40.7° to 1.3° (wide-tele)
Diagonal field of view: 70.0° to 2.5°(wide-tele)
Minimum Working Distance: 10-1500mm(Wide-Tele)
Aperture Range: F1.6-F4.4
Pan & Tilt
Pan Range: 360°endless
Pan Speed: Pan Manual Speed: 0.1° -210°/s,
Pan Preset Speed: 280°/s
Tilt Range: -10° ~ 90° (auto fl ip )
Tilt Speed: Tilt Manual Speed: 0.1°-150°/s,
Tilt Preset Speed: 250°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 300
Patrol: 8 patrols, up to 32 presets per patrol
Pattern: 4 patterns, with the recording time not less than 10 minutes per pattern
Power-off Memory: Support
Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display: ON/OFF
Smart-tracking: Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger
Infrared
IR irradiation distance: 150m
IR irradiation angle: Adjustable by zoom
Alarm
Alarm Input: 7 Inputs
Alarm Output: 2
Alarm Actions: Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client
Input & Output
Monitor Output: 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Audio Input: 1 Mic in/Line in interface
Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output: 1 Audio output interface
Line level, impedance: 600Ω
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 1920×1080
Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),
50fps (1920 × 1080, 1280 × 960, 1280 × 720);
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),
60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream: 50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144)
60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120)
ROI encoding: Support 24 areas with adjustable levels
Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2/G.722
No. of Simultaneous Users: Up to 20 users
Three-Stream: Support
Mini SD Card: Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures: User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
Client GUI
Camera Control: Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display: Time: Week: Date, 6 formats on the Client
Client: Support iVMS-4200
Web Browser: IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 +
General
RS-485 Protocols: , Pelco-P, Pelco-D, self-adaptive
Menu Language: English
Power Supply: 24 VAC & Hi-PoE
Power Consumption: 24 VAC:Max. 60W
High-PoE:Max. 50W
Working Temperature/Humidity: Outdoor: -40°C to 65°C (-40°F to 149°F)
Protection Level: IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Mounting: Various mounting modes optional
Dimensions: Φ245×373.94mm (Φ9.65”×14.72”)(Outdoor)
Weight (approx.): 6Kg (13.23 Ibs)

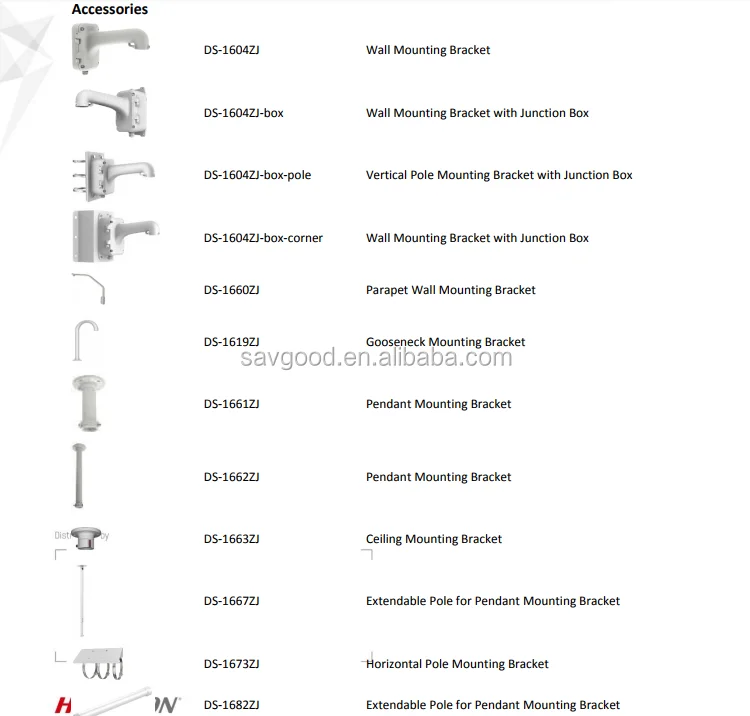

Mount Option: Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box

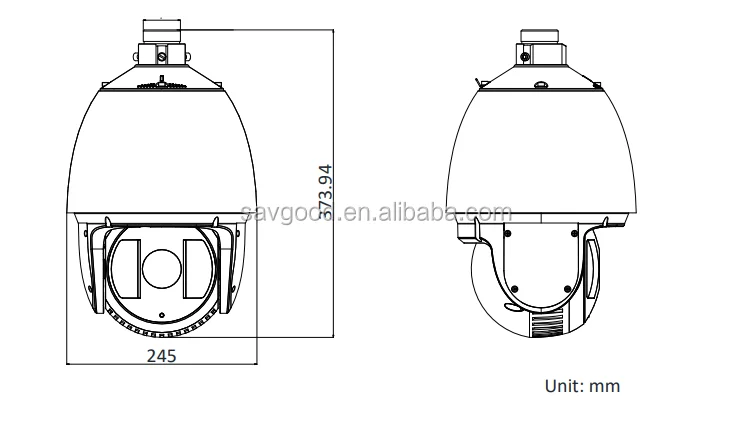

Dimension



7232-.png7232-8236I5 .png

Free Software

Free Software (iVMS-4200):

hikvision software



Mobile App (iVMS-4500):

hikvison app





Packaging & Shipping

Packaging:

760 .jpg



Shipping:

The common adopted Shipping methods including: DHL, FedEx, TNT, UPS, EMS, buik order By Air, By Sea

We can calculate the cost based on your quantity and choose a most quick and economic way for you.
We will send you tracking number before shipping.





Our Services

Payment Way:
T/T, Paypal, West Union, MoneyGram.

Delivery Time:
Goods in Stock needs 2-5 working days, not in stock and for bulk order needs 7-20 working days.

OEM Service:
We could offer OEM and ODM services for our clients.

Quality Warranty:
2 years hardware warranty, whole life technical service for continue cooperating customers.
