Savgood OEM 3MP 30X Network PTZ Camera DWDR focal length 4.3-129mm ip speed dome camera

  • 4 - 39 Pieces
    $580.00
  • >=40 Pieces
    $555.00
Type:
IP Camera
Style:
Dome Camera
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 50 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
DS-2DE5330W-AE
Special Features:
Waterproof / Weatherproof
Sensor:
CMOS
Technology:
Pan / Tilt / Zoom
Resolution:
2048*1536
WDR:
DWDR
Day/Night:
ICR
APP:
Free iPhone, Android App.
Focal Length:
4.3-129mm, 30x
Megapixel:
3MP
Image Sensor:
1/2.8" Progressive Scan CMOS
HLC:
Support
Hi-POE:
Support
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Weight: 3Kg (6.61Ibs)
Measurement: 220*305mm ( 8.66"*12.02")(Outdoor)
183.4*243mm( 7.22"*9.56") (Indoor ceiling)
245*236mm( 9.65"*9.29") (Indoor in-ceiling)
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 50 To be negotiated
Top

Product Description

photobank (9)



Model



DS-2DE5330W-AE: 3MP 30X Network PTZ Camera



Features



• 1/2.8’’ Progressive Scan CMOS
• 2048 × 1536@30fps
• 3D DNR, D WDR
• 3D intelligent positioning
• 30X Optical Zoom
• IP66 rating



Specification



DS-2DE5330W-AE

Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Effective Pixels: 2048(H)x1536(V)
Signal System: PAL/NTSC
Minimum Illumination: F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux,
White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: Auto/Manual
BLC: ON/OFF
HLC: Support
Smart defog: Support
WDR: DWDR
Shutter Time: 1-1/10,000s
Day& Night: ICR
Digital Zoom: 16X
Privacy Masking: 2 privacy masks programmable
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 4.3-129mm, 30x
Zoom Speed: Approx.3s(Optical Wide-Tele)
Angle of View: 57.4° to 2.8°degree (Wide-Tele)
Minimum Working Distance: 10-1500mm(Wide-Tele)
Aperture Range: F1.6-F5.0
Pan & Tilt
Pan Range: 360°endless
Pan Speed: Pan Manual Speed: 0.1° -250°/s,
Pan Preset Speed: 300°/s
Tilt Range: -5°~90° (Auto Flip )
Tilt Speed: Tilt Manual Speed: 0.1°-150°/s,
Tilt Preset Speed: 200°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 300
Patrol: 8 patrols, up to 32 presets per patrol
Pattern: 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory: Support
Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display: ON/OFF
Alarm
Alarm Input: 2
Alarm Actions: Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage
Input & Output
Audio Input: 1 Mic in/Line in interface
Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output: 1 Audio output interface
Line level, impedance: 600Ω
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: 1920×1080
Main Stream: 50Hz:25fps (2048×1536,1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ;
60Hz:30fps(2048×1536,1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)
Sub Stream: 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream: 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
Video Compression: H.264 / MJPEG
ROI encoding: Support 2 areas with adjustable levels
Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users: Up to 20 users
Dual Stream: Support
Mini SD Card: Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level: Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures: User authentication (ID and PW), host authentication (MAC address)
Hik-Connect: Support
Client GUI
Camera Control: Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display: Time: Week: Date, 6 formats on the Client
Client: Support iVMS-4200
Web Browser: IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 +
General
Menu Language: English
Power Supply: AC 24V and PoE (802.3at, class4)
Power Consumption: Max. 18W
Working Temperature/Humidity: -30 ℃-65℃(-22℉-149℉)(outdoor dome) / -10℃-50℃(14℉-122℉)(indoor dome )
90% or less
Protection Level: IP66, IK10 TVS 4,000V lightning protection, surge protection and voltage transient protection

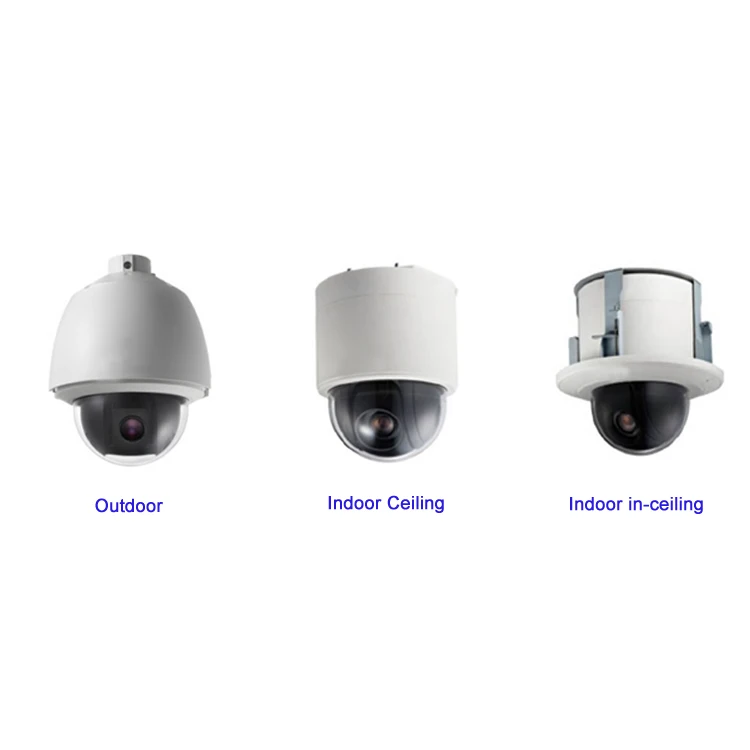

Mounting: Various mounting modes optional
Dimensions: Φ220×305mm (Φ8.66”×12.02”)(Outdoor)
Φ183.4×243mm(Φ7.22”×9.56”) (Indoor ceiling)
Φ245×236mm(Φ9.65”×9.29”) (Indoor in-ceiling)
Weight (approx.): 3Kg (6.61Ibs)
Mount Option: Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box

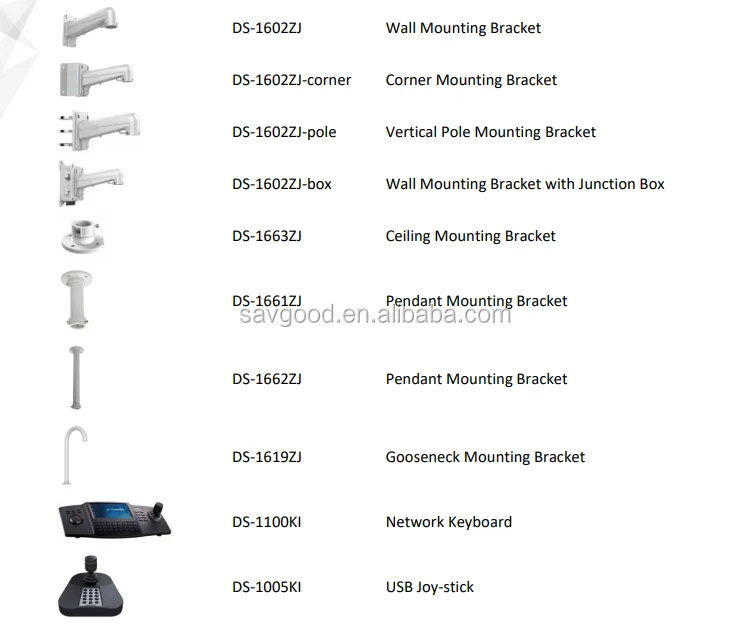

Accessories

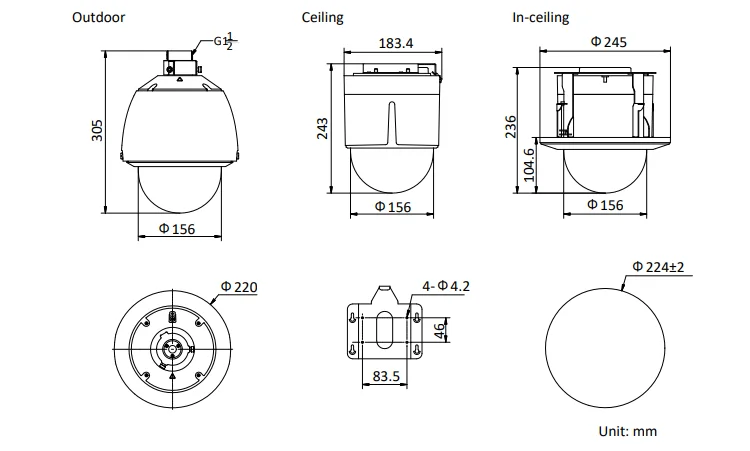

Dimension

5220



Free Software

Free Software (iVMS-4200):

hikvision software



Mobile App (iVMS-4500):

hikvison app





Packaging & Shipping

Packaging:

760 .jpg



Shipping:

The common adopted Shipping methods including: DHL, FedEx, TNT, UPS, EMS, buik order By Air, By Sea

We can calculate the cost based on your quantity and choose a most quick and economic way for you.
We will send you tracking number before shipping.





Our Services

Payment Way:
T/T, Paypal, West Union, MoneyGram.

Delivery Time:
Goods in Stock needs 2-5 working days, not in stock and for bulk order needs 7-20 working days.

OEM Service:
We could offer OEM and ODM services for our clients.

Quality Warranty:
2 years hardware warranty, whole life technical service for continue cooperating customers.
