2Mp 35x optical zoom drone payloads UAV block gimbal camera

  • 1 - 9 Pieces
    $3,650.00
  • >=10 Pieces
    $2,800.00
Color:
Black
Lead Time:
Quantity(Pieces) 1 - 50 51 - 200 >200
Est. Time(days) 7 10 Negotiable
Customization:
Customized logo (Min. Order: 50 Pieces)
Language OEM (Min. Order: 50 Pieces)

More

PTZ Protocol OEM (Min. Order: 50 Pieces) Less
Samples:
$3,650.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
savgood
Model Number:
SG-UAV2035N
Megapixel:
2mp
Lens:
6-210mm
Optical Zoom:
35x optical
Digital Zoom:
4x digital
Electronic Image Stabilization:
Support
Video Compression:
H.265/H.264/H.264H/MJPEG
GPS:
Support
Auto Tracking:
Support
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Dimensions:175mm*100mm*162mm
Weight: 842g
Port
Shanghai
Lead Time :
Quantity(Pieces) 1 - 50 51 - 200 >200
Est. Time(days) 7 10 To be negotiated
Video Description



Product Description

SG-UAV2035N

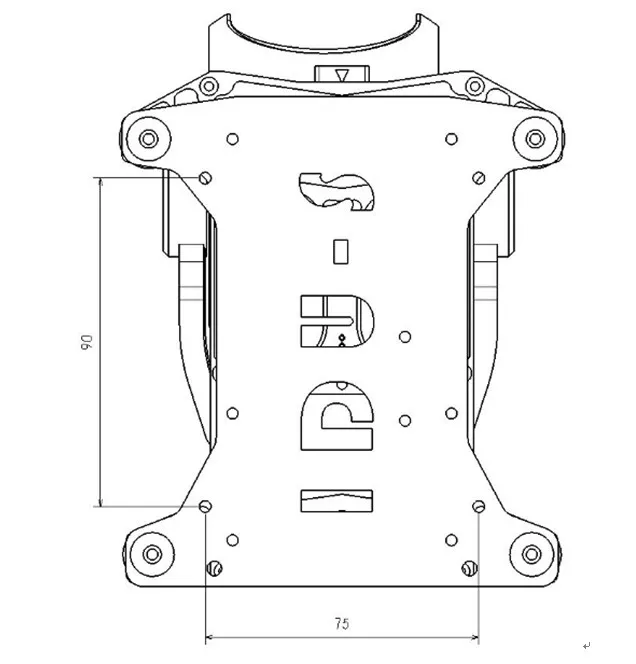

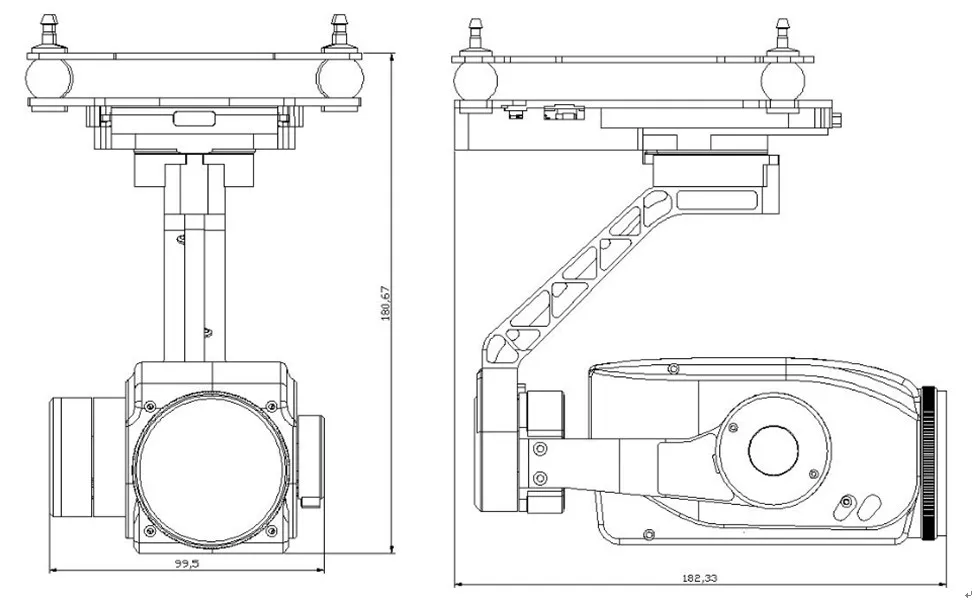

 SG-UAV2035N size1SG-UAV2035N size2

Model

SG-UAV2035N

- 2 Megapixel 35x Zoom Starlight Drone Camera with Gimbal




Features

> 1/1.8” 2 Megapixel COMS Sensor.

> Powerful 35x optical zoom (6mm~210mm), 4x Digital Zoom.

> Max. 2Mp(1920x1080) Resolution

> Support Optical Defog, Electronic Image Stabilization

> 3-Axis stabilized Pan-Tilt, High precision: 0.008°

> Support GPS info Overlay.

> Support smart Auto-Tracking

> Quick Assembly and Disassembly, Open SDK.



Specification

Model

SG-UAV2035N

Sensor

Image Sensor

1/1.8" CMOS

Effective Pixels

Approx. 2.13 Megapixel

Max. Resolution

1945(H)x1225(V)

Lens

Focal Length

6mm~210mm

Optical Zoom

35x

Aperture

F1.5~F4.8

Close Focus Distance

0.1m~1.5m (Wide~Tale)

Angle of View

61°~2.0°

Video Network

Compression

H.265/H.264/H.264H/MJPEG

Video/Photo Format

MP4/JPEG.

Storage Capabilities

TF card, up to 128G

Network Protocol

Onvif, GB28181, HTTP, RTSP, RTP, TCP, UDP

Resolution

Network Output

50Hz: 25fps@2Mp(1920×1080), 60Hz: 30fps@2Mp(1920×1080)

Minimum Illumination

Color: 0.001Lux/F1.5; B/W: 0.0001Lux/F1.5

Defog

Electronic Defog + Optical Defog(Default ON).

Digital Zoom

4x

Electronic Image Stabilization

Support

One Key to 1x Image

Support

Pan-Tilt Gimbal

Angular Vibration Range

±0.008°

Mount

Detachable

Controllable Range

Pitch: +70°~-90°, Yaw: ±160°

Mechanical Range

Pitch: +75°~-100°, Yaw: ±175°, Roll:+90°~-50°

Max. Control Speed

Pitch: ±120°/s, Yaw: ±180°/s

Auto-tracking

Support

Conditions

Operating Conditions

(-10°C~+60°C/20% to 80%RH)

Storage Conditions

(-20°C~+70°C/20% to 95%RH)

Power Supply

DC 12V~25V

Power Consumption

8.4W

Dimensions(L*W*H)

Approx. 175mm*100mm*162mm

Weight

Approx. 842g











Packing

packing

High light features

optical defog



IVS

Application

Application

Why choose us

VS Others

Company Information

OEM 3



Savgood Technology - Zoom Camera Modules manufacturer.

Most of Long Range Zoom solutions are using Normal box camera and Motorized Lens. Which is very Expensive, Not Stable and Low Efficiency Auto Focus.

To solve the current issues of Long Range Zoom cameras solution, based on SONY's popular, high image quality and ultra starlight Exmor/Exmor R CMOS Sensor, we are focus on Ultra LONG RANGE ZOOM camera modules, and have successfully designed & developed many kinds of Zoom Camera Modules, for example, 2Mp 86x Zoom (10~860mm), 2Mp 90x Zoom (6~540mm), 2Mp/4K/8Mp 50x Zoom (6~300mm).

They can support our own fast & accurate excellent Auto Focus algorithm, Defog and IVS (Intelligent Video Surveillance) functions.
