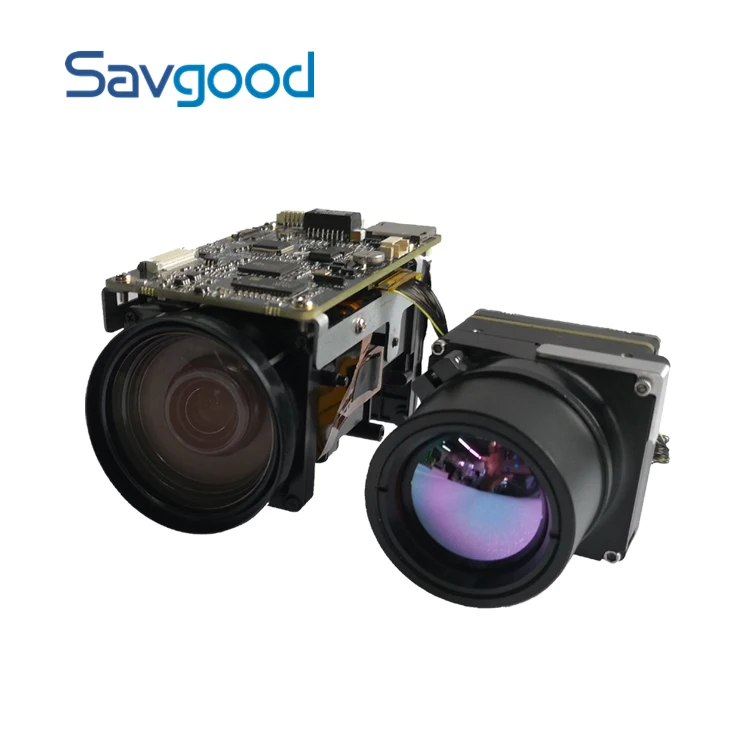

SG-TVZM2030N-25 2MP 4.7~141mm 30x Zoom Visible 640x480 Thermal Bi-spectrum Hybrid Network IP Thermal Imaging Camera Module

FOB Reference Price:Get Latest Price
$5,353.00 - $5,735.00 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 10 Pieces)
Language OEM (Min. Order: 10 Pieces)

More

PTZ Protocol OEM (Min. Order: 10 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Savgood
Model Number:
SG-TVZM2030N-25
Type:
IP Camera
Style:
Box Camera
Sensor:
CMOS
Special Features:
2MP
Megapixel:
2MP(1920x1080)
Lens:
4.7~141mm
Zoom:
30 Optical Zoom
Recording:
Max.30fps/25fps (1920x1080)
Thermal Sensor:
Uncooled Microbolometer FPA(Amorphous silicon)
Thermal Resolution:
640x480
Pixel Size:
17μm
Thermal Lens:
25mm(19mm Lens optional)
SD Card:
128GB
Onvif:
Support
Technology:
NetWork
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Paper box
Port
Shanghai, Hangzhou
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(days) 10 To be negotiated
Video Description
Top

Product Description





Model

SG-TVZM2030N-25: 2MP 4.7~141mm 30x Zoom Visible 640x480 Thermal Bi-spectrum Hybrid Network IP Thermal Imaging Camera Module



Features

> 1 Channel Thermal and Visible Video complex stream.
> One single Main Control Chip, more stable than double IP version products.
> Smart tracking on both Thermal camera(Night) and Visible camera(Day)
> Support double video output: Network and HDMI port(Optional).
> Support various OSD information overlay.
> Accurate focus, high speed, great image effects, precise color reproduction, excellent night vision with low light effects.


Visible Camera
> 1/2.8” Sony Exmor CMOS Sensor.
> Powerful 30x optical zoom (4.7~141mm Len).
> Max. 2Mp(1920x1080) Resolution
> Support Electronic Defog and Optical Defog


Thermal Camera
> 640x480 Resolution, high sensitivity sensor
> 17um Pixel pitch.
> 25mm Fixed Thermal Lens (19mm Optional)
> Modular design, with the same block size for CCTV Monitoring version and Temperature Measurement Version (Optional, it doesn't support Temperature Measurement by default.)



Specification

Thermal Camera

Model

SG-TVZM2030N-25

Sensor

Image Sensor

Uncooled Microbolometer FPA(Amorphous silicon)

Resolution

640 x 480

Pixel Size

17μm

Spectral Range

8~14μm

Lens

Focal Length

25mm, (19mm Lens optional)

F Value

1.0

Focus

Athermalized, Focus-free

Angle of View

24.5°x18.5° (32.0°x24.2°)

Video Network

Compression

H.265/H.264/H.264H

Storage Capabilities

TF card, up to 128G

Network Protocol

Onvif, GB28181, HTTP, RTSP, RTP, TCP, UDP

Smart Alarm

Motion Detection, Cover Alarm,Storage Full Alarm

Resolution

50Hz: 25fp(640×480)

Operating Conditions

(-20°C~+60°C/20% to 80%RH)

Storage Conditions

(-40°C~+65°C/20% to 95%RH)

Dimensions(L*W*H)

Approx. 61.8mm*38mm*42mm (Included 25mm Lens)

Weight

Approx. 143g (Included 25mm Lens)



Visible Camera

Model

SG-TVZM2030N-25

Sensor

Image Sensor

1/2.8" Sony Exmor CMOS

Effective Pixels

Approx. 216 Megapixel

Max. Resolution

1920(H)x1080(V)

Lens

Focal Length

4.7mm~141mm

Aperture

F1.5~F4.0

Close Focus Distance

1m~1.5m (Wide~Tale)

Angle of View

60°~2.3°

Video Network

Compression

H.265/H.264/H.264H

Storage Capabilities

TF card, up to 128G

Network Protocol

Onvif, GB28181, HTTP, RTSP, RTP, TCP, UDP

Smart Alarm

Motion Detection, Cover Alarm,Storage Full Alarm

Resolution

50Hz: 25fps(1920×1080), 25fps(1280×720)

60Hz: 30fps(1920×1080), 30fps(1280×720)

S/N Ratio

≥55dB (AGC Off, Weight ON)

Minimum Illumination

Color: 0.05Lux/F1.5; B/W: 0.005Lux/F1.6

EIS

Electronic Image Stabilization (ON/OFF)

Defog

ON/OFF

Exposure Compensation

ON/OFF

Strong Light Suppression

ON/OFF

Day/Night

Auto/Manual

Zoom Speed

Approx 3.0s(Optical Wide-Tele)

White Balance

Auto/Manual/ATW/Indoor/Outdoor/ Outdoor Auto/ Sodium lamp Auto / Sodium lamp

Electronic Shutter Speed

Auto Shutter (1/3s~1/30000s)

Manual Shutter (1/3s~1/30000s)

Exposure

Auto/Manual

2D Noise Reduction

Support

3D Noise Reduction

Support

Flip

Support

External Control

RS232

Communication Interface

Compatible with the SONY VISCA Protocol

Focus Mode

Auto/Manual/Semi-automatic

Digital Zoom

4x

Analog Video

Support

Operating Conditions

(-10°C~+60°C/20% to 80%RH)

Storage Conditions

(-20°C~+70°C/20% to 95%RH)

Power Supply

DC 12V±15% (Recommend: 12V)

Power Consumption

Static power: 5W, Sports power: 6W

Dimensions(L*W*H)

Approx. 94mm*55mm*48mm

Weight

Approx. 154g

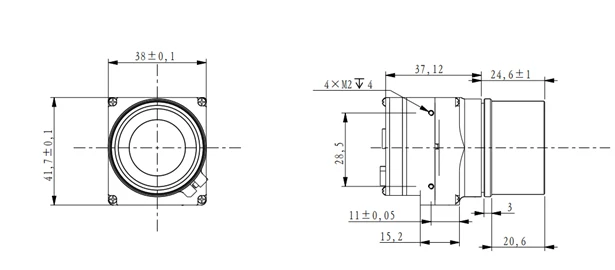

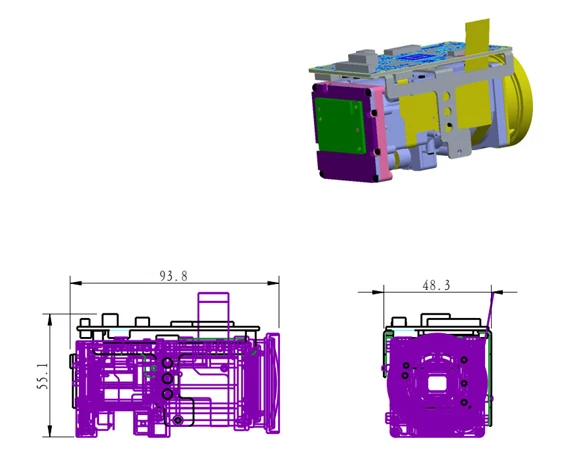

Dimensions(mm)

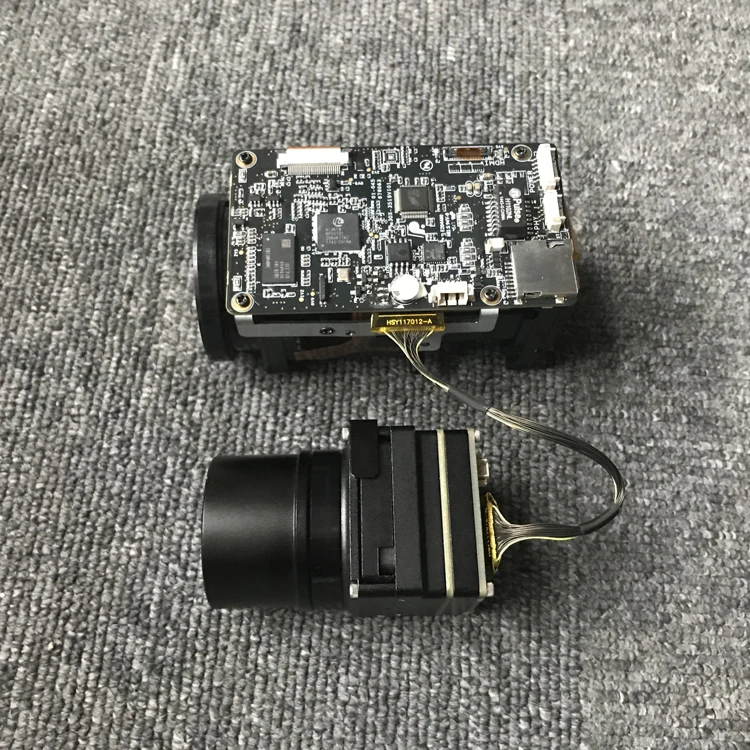

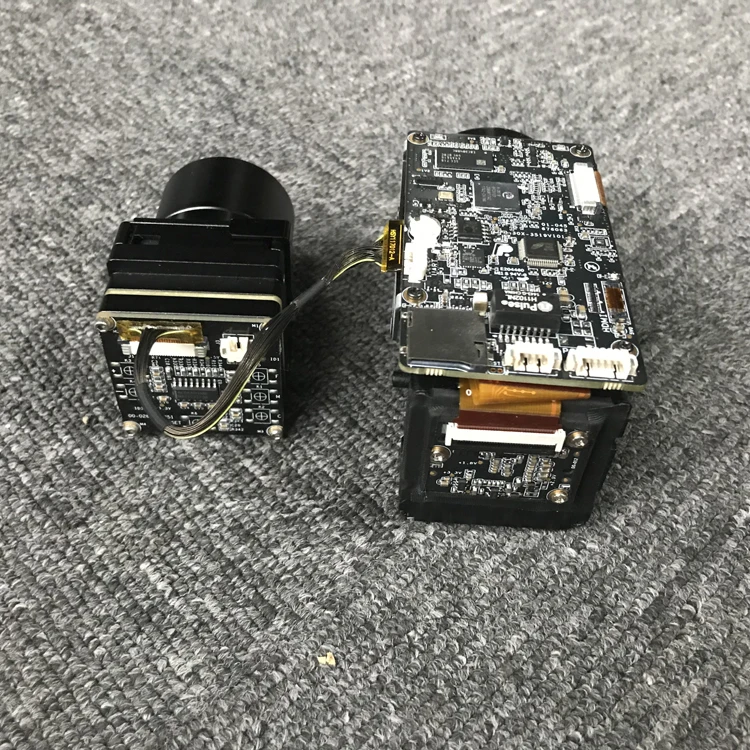

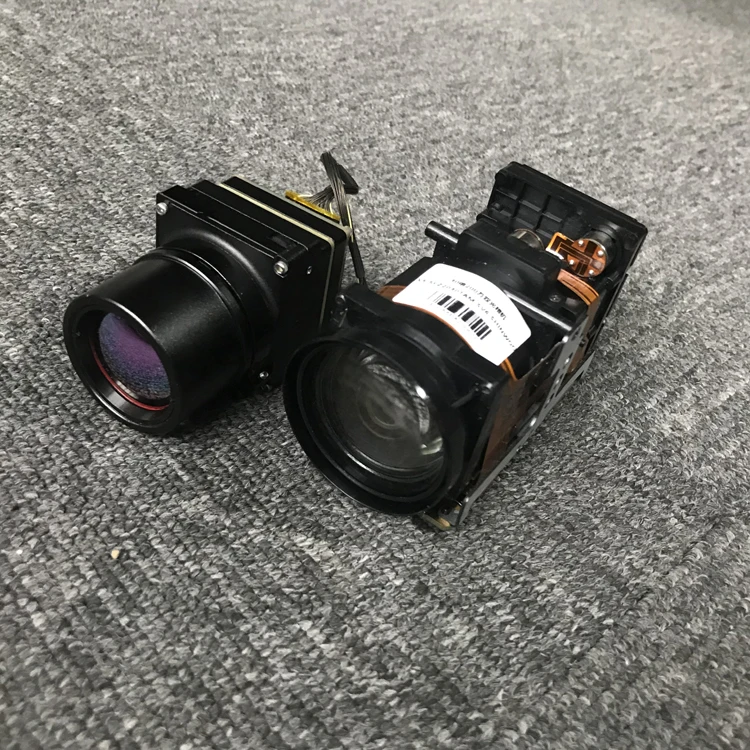

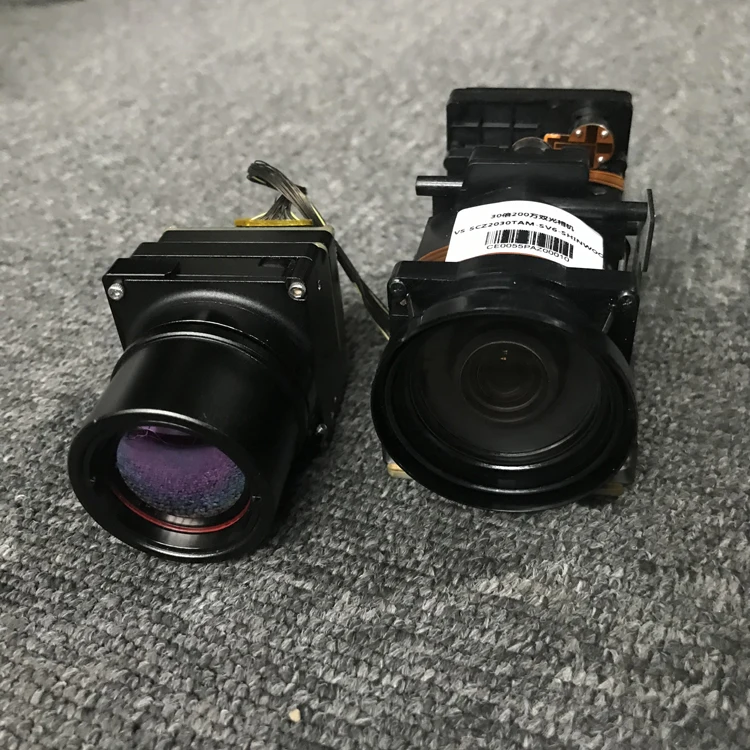

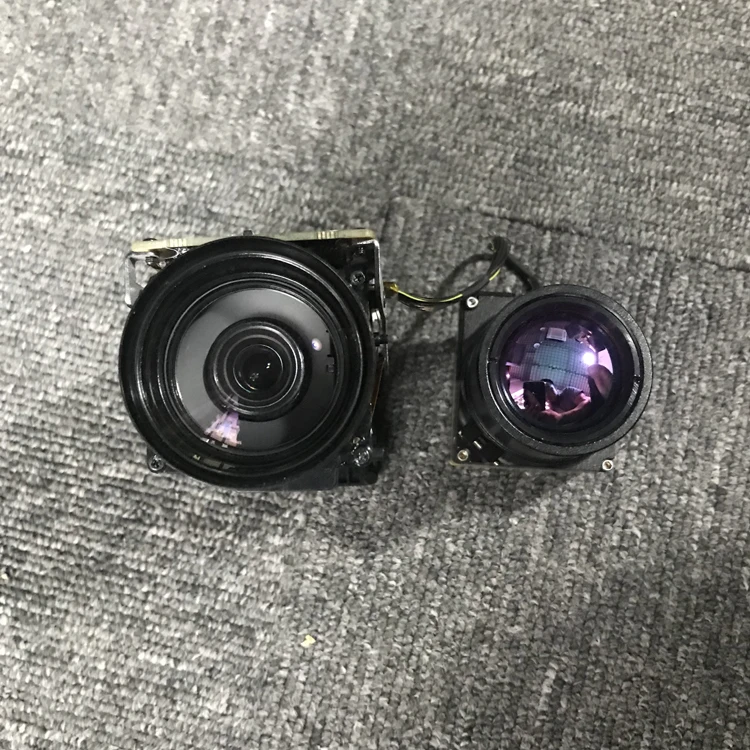

Pictures









Packaging & Shipping



Shipping:

The common adopted Shipping methods including: DHL, FedEx, TNT, UPS, EMS, buik order By Air, By Sea

We can calculate the cost based on your quantity and choose a most quick and economic way for you.
We will send you tracking number before shipping.

Our Services

Payment Way:
T/T, Paypal, West Union, MoneyGram.

Delivery Time:
Goods in Stock needs 2-5 working days, not in stock and for bulk order needs 7-20 working days.

OEM Service:
We could offer OEM and ODM services for our clients.

Quality Warranty:
2 years hardware warranty, whole life technical service for continue cooperating customers.
