Dahua IPC-HD4140X-3D 1.3MP Dual-Lens People Counting line crossing counting AI Network Camera

  • 24 - 47 Pieces
    $175.00
  • >=48 Pieces
    $167.00
Type:
IP Camera AI Camera
Style:
Box Camera
Resolution:
1280 X 960
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 40 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
Dahua
Model Number:
IPC-HD4140X-3D
Special Features:
Waterproof / Weatherproof
Sensor:
CMOS
Technology:
Network, AI
Resolution:
1280*960
Focal Length:
Fixed Lens 2.1mm or 2.8mm optional
Image Sensor:
Two 1/3"1.3Megapixel progressive scan CMOS
Noise Reduction:
3D DNR
Power Supply:
DC12V, PoE (IEEE 802.3af)(Class 0)
People Counting:
Support line crossing people counting, region people counting
Audio Interface:
Built-in Mic
Max. Aperture:
F2.2
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Weight:23.5kg
Measurement: 45cm x 45cm x 67cm
Port
Shanghai
Lead Time :
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 40 To be negotiated
Top

Product Description

 IPC-HD4140X-3D



Model

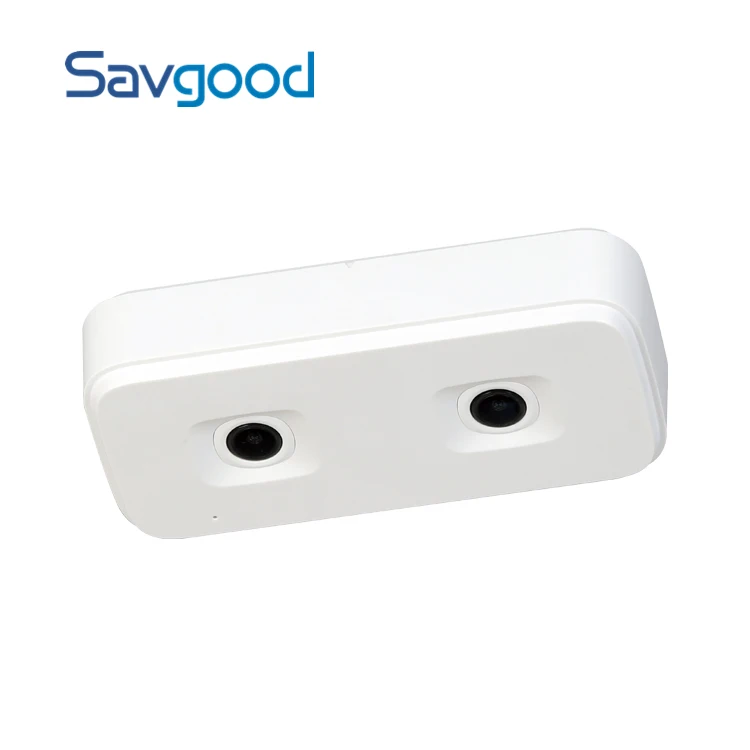

IPC-HD4140X-3D: 1.3MP Dual-Lens People Counting AI Network Camera



Features



> Two 1/3” 1.3Megapixel progressive scan STARVISTM CMOS
> H.265&H.264 triple-stream encoding
> 25/30fps 1.3MP(1280×960)
> DWDR, Day/Night(Electronic), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.1mm fixed lens (2.8mm optional)
> Micro SD memory, IP54, PoE
> People Counting: Support line crossing people counting, region people counting



Specification



IPC-HD4140X-3D

Camera

Image Sensor

Two 1/3”1.3Megapixel progressive scan CMOS

Effective Pixels

1028(H)x960(V)

RAM/ROM

512MB/128MB

Scanning System

Progressive

Minimum Illumination

0.003Lux/F2.2 ( Color,1/3s,30IRE)

0.02Lux/F2.2 ( Color,1/30s,30IRE)

0.005Lux/F2.2 ( B/W,1/3s,30IRE)

0.02Lux/F2.2 ( B/W,1/30s,30IRE)

S/N Ratio

More than 50dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.1mm (2.8mm)

Max. Aperture

F2.2

Angle of View

H: 109.5° (89°), V: 84.3° (64°)

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

0.3m (0.98ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.1 mm

24m(79ft)

10m(33ft)

4.8m(15.7ft)

2.4m(7.9ft)

2.8 mm

35m(115ft)

14m(46ft)

7m(23ft)

3.5m(11.5ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

N/A

Artificial Intelligence

People Counting

Line crossing people counting, Region people counting, Height filter, Loitering filter

General Intelligence

Event Trigger

Motion detection, Video tampering, Scene changing,

Network disconnection, Ip address conflict, Illegal

access, Storage anomaly

General Intelligence

N/A

Video

Compression

H.265/H.264/H.264H/H.264B/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

3 Streams

Resolution

1.3M(1280x960)/ 720P(1280x720)/

D1(704×576/704x480)/ VGA(640x480)

Frame Rate

Main Stream: 1.3MP (1~25/30fps)

Sub Stream 1: D1 (1 ~ 25/30fps)

Sub Stream 2: 720P (1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 1280~ 6144Kbps

H.265: 512~ 3072Kbps

Day/Night

Electronic

BLC Mode

BLC / HLC /DWDR

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

N/A

Defog

N/A

Digital Zoom

16x

Flip

N/A

Mirror

N/A

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

Built-in Mic

RS485

1 port

Alarm

1 channel In: 5mA 5VDC

1 channel Out: 300mA 12VDC

Electrical

Power Supply

DC12V, PoE (IEEE 802.3af)(Class 0)

Power Consumption

DC12V: 3.6W 4.6W(People Counting on)

PoE: 4.2W 5.3W((People Counting on))

Environmental

Operating Conditions

-10° C ~ +45° C (14° F ~ +113° F) / Less than 95% RH

Storage Conditions

-10° C ~ +45° C (14° F ~ +113° F) / Less than 95% RH

Ingress Protection

IP54

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

162.1mmx76mmx37.8mm (6.38"x2.99"x1.49")

Net Weight

0.3kg (0.66lb)

Gross Weight

0.46kg (1.01lb)

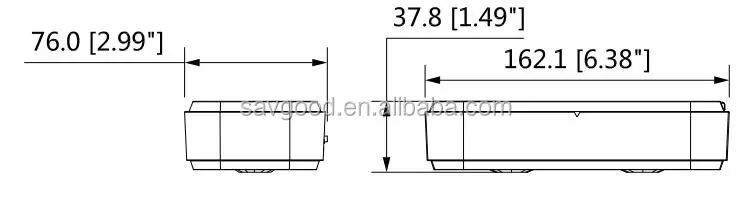

Dimension



IPC-HD4140X-3D

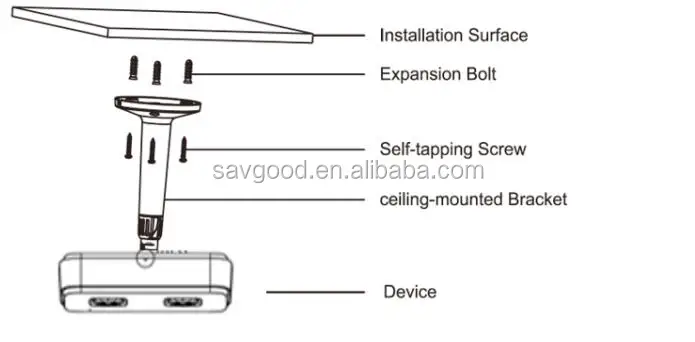

Installation



IPC-HD4140X-3D





Free Software

Free Software (Smart PSS):

dahua software

Mobile App (iDMSS, gDMSS):

dahua APP

Packaging & Shipping

Packaging:

760 .jpg



Shipping:

The common adopted Shipping methods including: DHL, FedEx, TNT, UPS, EMS, buik order By Air, By Sea

We can calculate the cost based on your quantity and choose a most quick and economic way for you.
We will send you tracking number before shipping.





Our Services

Payment Way:
T/T, Paypal, West Union, MoneyGram.

Delivery Time:
Goods in Stock needs 2-5 working days, not in stock and for bulk order needs 7-20 working days.

OEM Service:
We could offer OEM and ODM services for our clients.

Quality Warranty:
2 years hardware warranty, whole life technical service for continue cooperating customers.





FAQ

1. What products do you deal with?

We mainly deal with IP Solutions including IP Cameras, NVRs, POE Switches, also HDCVI, AHD and some Analog Products. We developed our professional PC-Based NVR software 100% in house, which is stable and unique in the market, it could manage multi-brands IP cameras.



2. The products you provided are original?

We only provide 100% original products which are all directly from Hikvision and Dahua head factories in Hangzhou City. NO FAKE VERSION. BUT OEM Service is acceptable.



3. Are OEM products same features as original?
OEM products have all the same features as original, just with different model number, OEM NVR has different front panel.



4. Do you supply PC-baed NVR/CMS software?
Yes, all ip cameras and NVRs come with FREE NVR/CMS software.



5. Do your cameras and NVRs support Mobile viewing?
Yes, all ip cameras and NVRs support mobile APP(Android and IOS), you can see videos by phone freely.
